Name: 3/4 in. MIP x 7/8 in. O.D. Compression x 24 in. Polymer Braided Water Heater Connector (0.57 in. I.D.)
SKU: 748002

BrassCraft 3/4 in. MIP x 7/8 in. O.D. Compression x 24 in. polymer braided water heater connector (0.57 in. I.D.), also known as Speedi Plumb PLUS connectors, combine advanced corrosion technologies with state-of-the-art manufacturing to provide the most flexible, corrosion resistant water heater connector available on the market today. Speedi Plumb PLUS patented polymer-braided jacket is specially engineered to be less abrasive and more flexible than the leading connectors. The polymer fibers bend freely without kinking, crimping or flattening, making installation easier, especially in cramped quarters. The braided jacket is also designed to resist corrosion from harsh household chemicals that can corrode and deteriorate stainless steel braiding. Polymer fibers are resistant to high temperature making them ideal for water heater connections. With a non-conductive polymer braid and EPDM rubber core, the absence of dissimilar metals within the waterway eliminates the potential for galvanic corrosion and the need for a dielectric union with the installation.

California residents

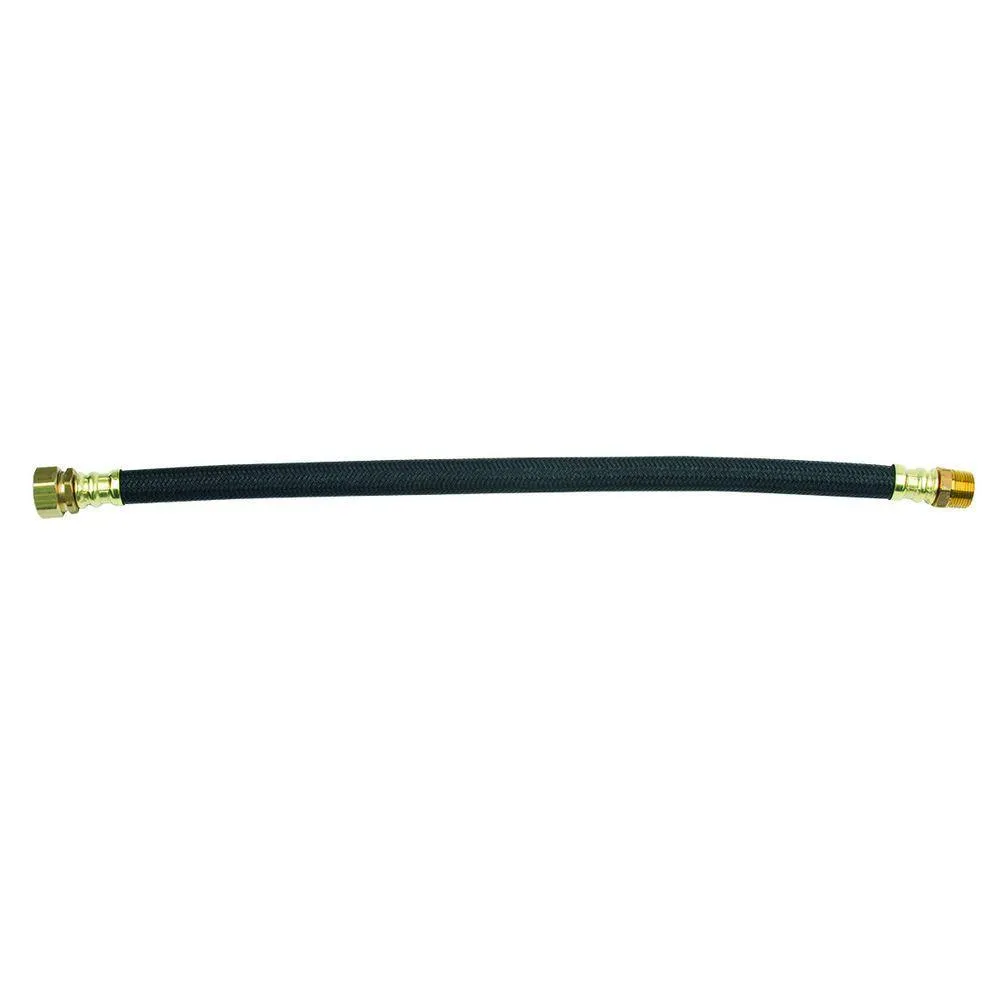

Polymer braided tube 0.57 in. I.D. x 24 in. L

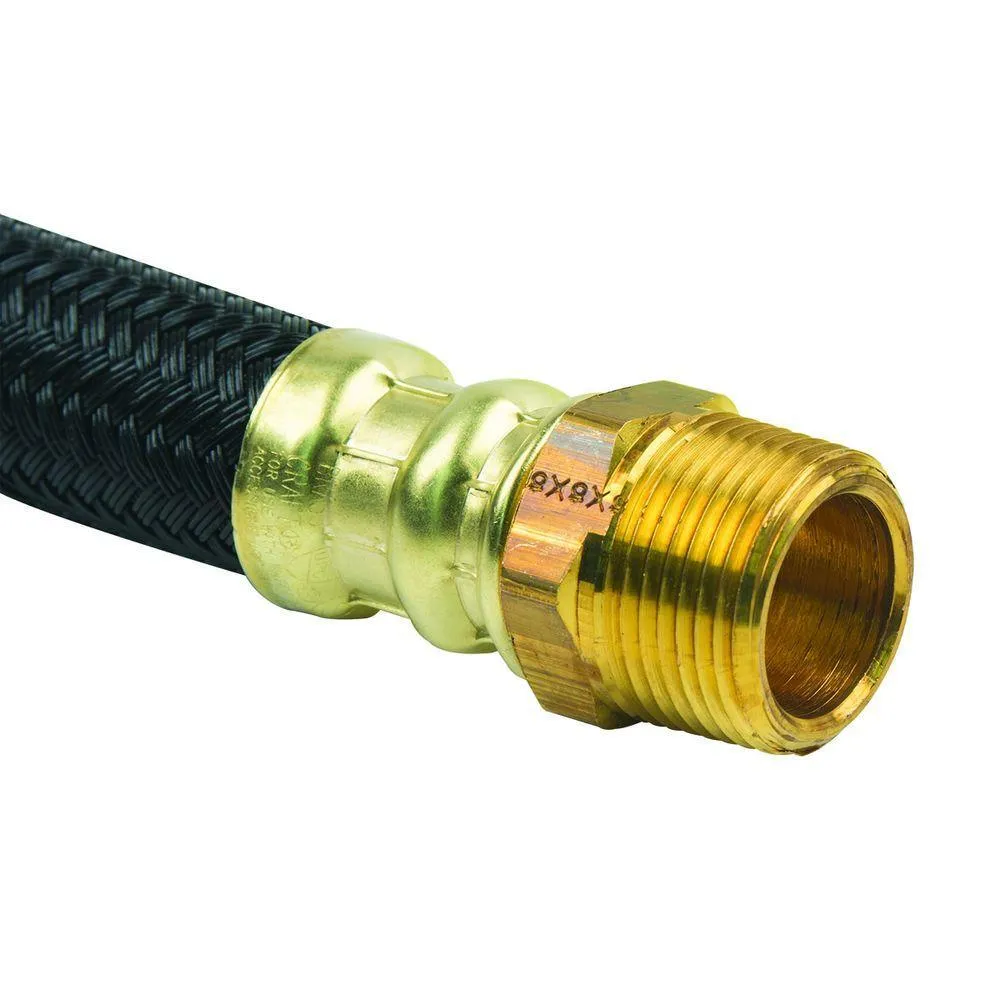

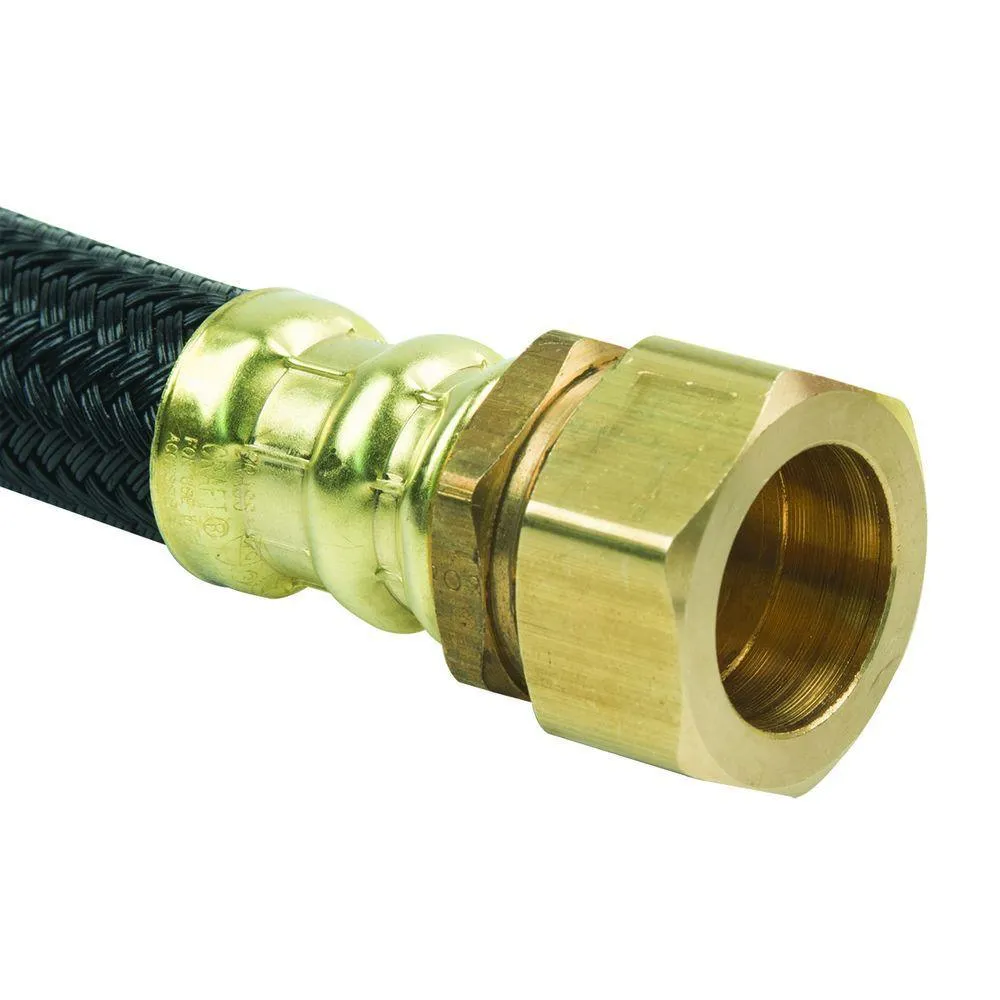

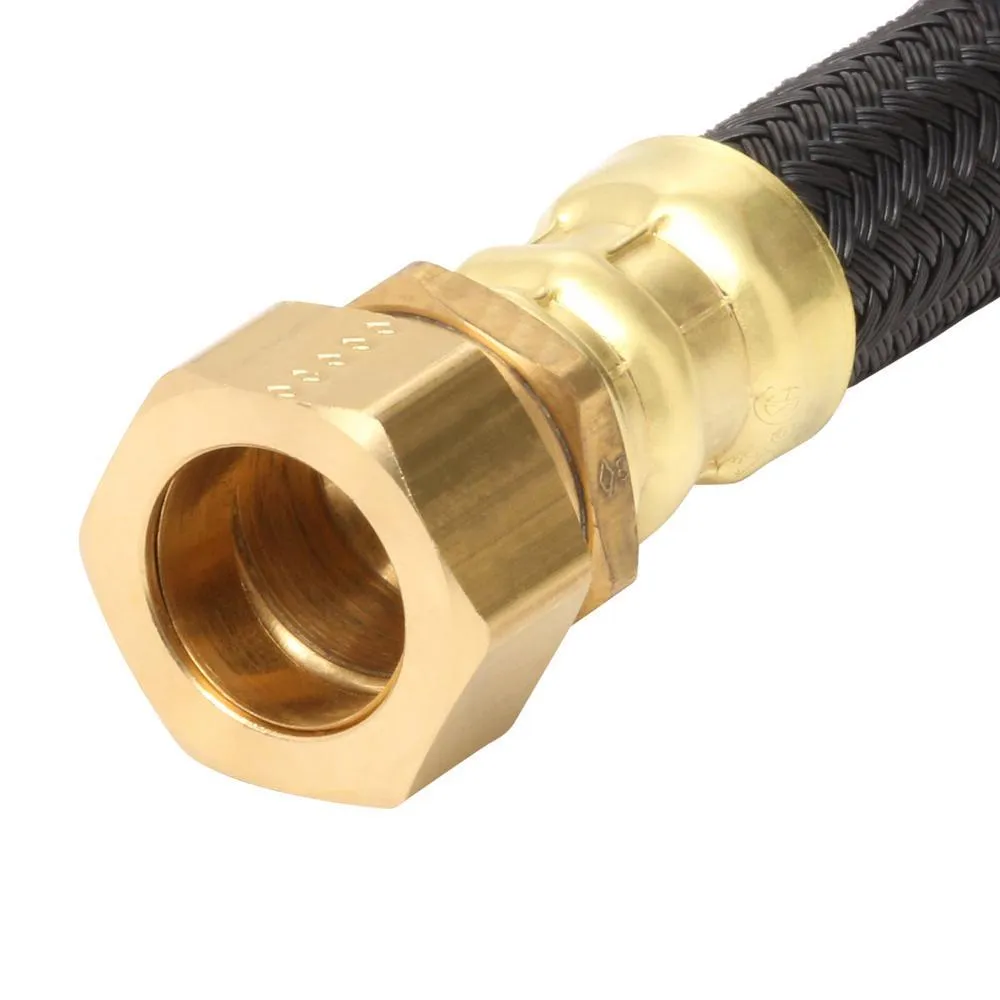

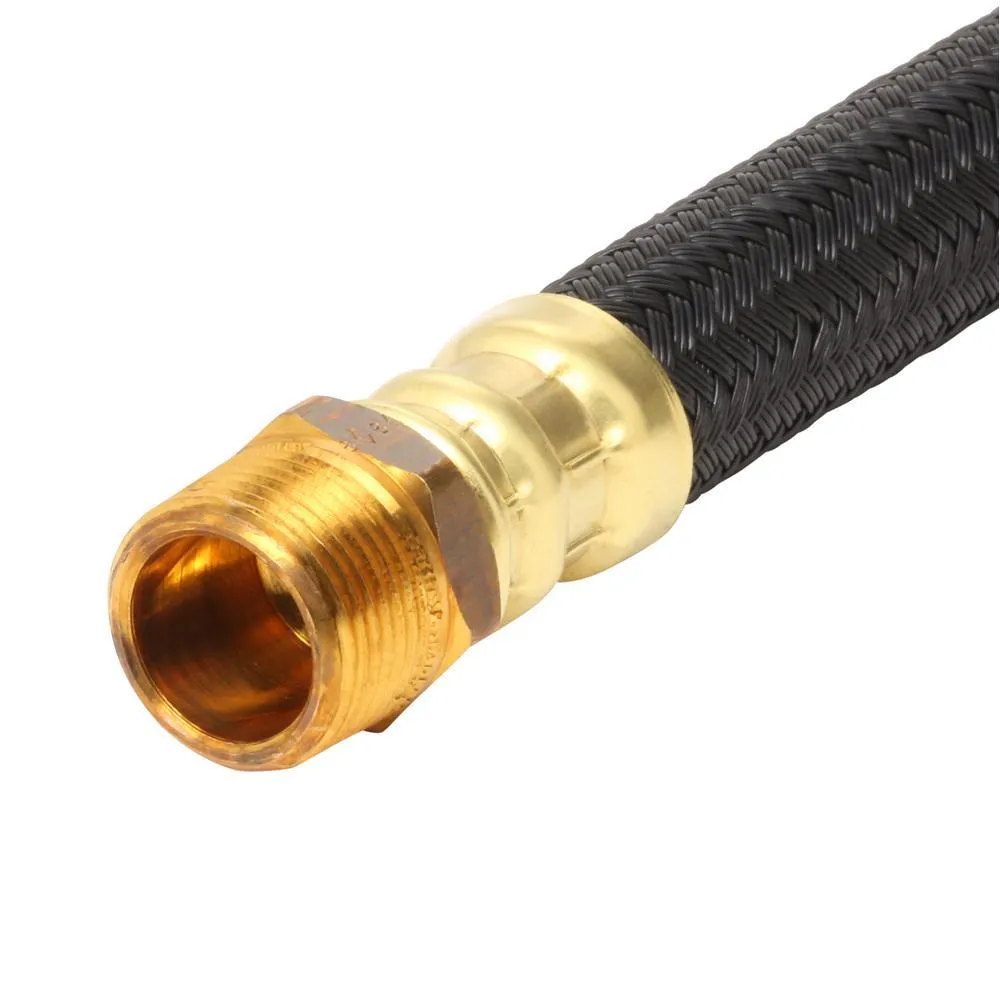

End connections: 3/4 in. MIP x 7/8 in. O.D. compression
Superior corrosion resistance inside and out, braided polymer jacket resists corrosion from harsh household chemicals
Polymer braid and inner core are constructed of non-conductive materials eliminating the potential for internal corrosion and the need for a dielectric union
Polymer fibers bend freely without kinking, crimping or flattening to make installation hassle-free
Quick installation, even in tight spaces
No dielectric union needed
Requires less torque to seal with pliable nitrile rubber washer, especially on rough nipple surfaces
Temperature rating: 40° to 140° F, intermittent to 180° F
Pressure rating: 125 psi maximum
No-lead certified
Designed, machined and assembled in the USA
CSA and IAPMO certified
NSF 61 and no-lead certified

Features

Item Weight	0.7436
Compatible Brand/Model	Fits Most Brands
For Use With	Electric Tank,Gas Tank
Product Weight (lb.)	0.7436 lb
Pack Size	1
Returnable	180-Day
Finish Family	Black
Material	Polymer Braided
Product Height (in.)	1.300 in
Product Depth (in.)	25.200 in
Product Width (in.)	1.400 in
Manufacturer Warranty	Limited Manufacturer Warranty
